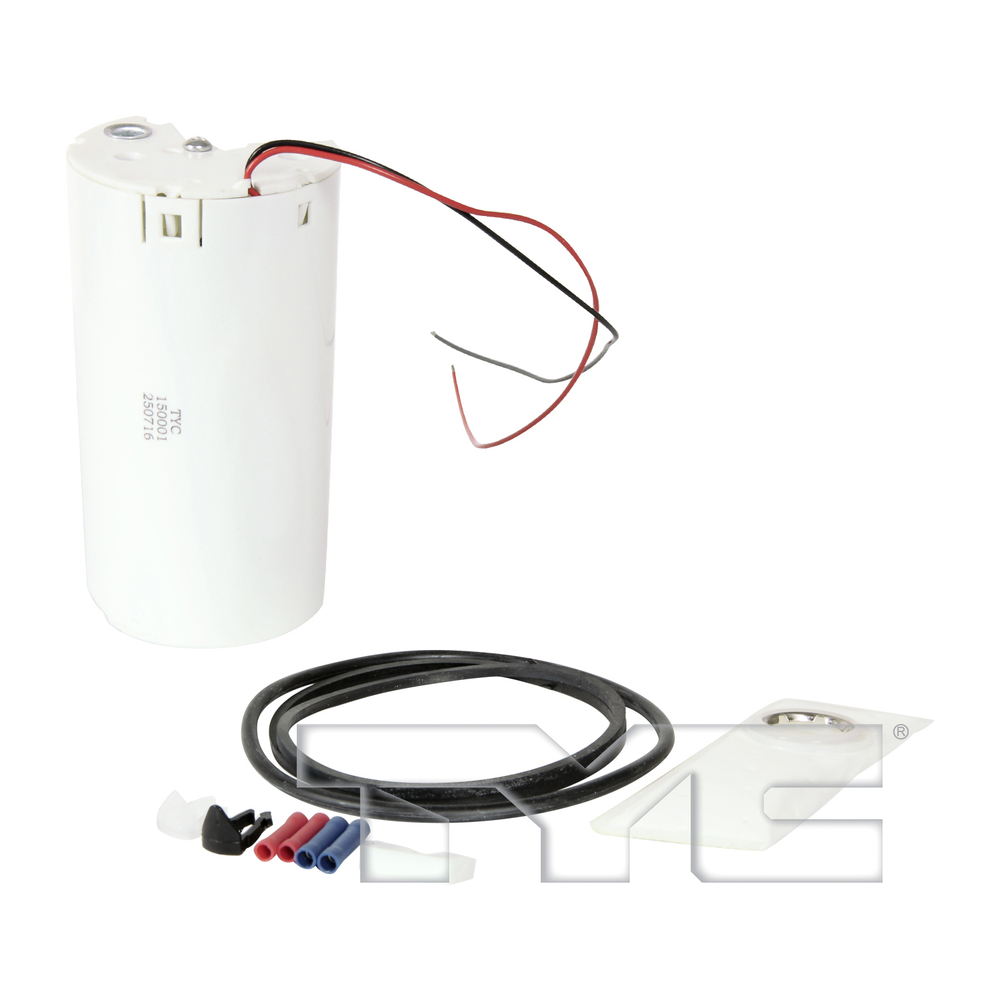

Fuel Pump Module for 90-97 Ford F-Series Pickup 7.5L V8 (19 Gal)
- SKU
- 150001-A
- Interchange
- SP154A SP154 953-3004 FG0229 FG0198 E2059MN EB059MNC USEP2059MN F1060A 525-2050 402-P2059MN P74159
- Free economy shipping · Contiguous US only. Orders generally ship within 1 business day. Carrier transit time is additional. Shipping details
- 30-day returns after delivery on all products. No restocking fee. Return shipping: we pay in the contiguous US; customers pay elsewhere. Returns
- Questions about this part? (213) 985-3434, Monday–Friday, 9 AM–5 PM Pacific. Contact support
Vehicle fitment
Not sure? Contact parts support with your VIN and SKU 150001-A.
Specifications
- Brand
- TYC
- CAPA certified
- No
- DOT/SAE compliant
- No
- Proposition 65 warning
- No
- Country of manufacture
- China
- Package dimensions
- 7.88 in L × 5.51 in W × 14.38 in H
- Package weight
- 2.23 lb
- Subcategory
- Fuel Pump
- Part type
- Fuel Pump
- Connector Pins Qty On Main Connector
- 2 Pins
- GPH (Gallons Per Hour Flow)
- 37 - 46 GPH
- Maximum Air Pressure
- 79.8-123.3
- Accessories Included
- Yes
- Voltage Regulator Included
- Yes
Description
Premium components for both the motor and fuel module components
Precision-made, computer-controlled rotationally balanced armatures, to CNC-machined impeller housing and motor shells
TYC Fuel Pumps feature a larger hose diameter, to enable the units to deliver higher fuel flow to the engine.
TYC’s design feature a secondary fuel outlet that reroutes fuel immediately back into the reservoir. It ensures that the reservoir fills up quickly, helping to cool pump & prevent fuel starvation during low fuel levels.
The internal strainer found within the reservoir limits exposure to dirt. Contains one large internal strainer with multi-layers prevent debris from entering the pump.
TYC has an enhanced design to featuring carbon commutators which are more resistant against oxidation for fuel that has higher ethanol content.
OEM#E7TZ 9C407 BA
