TYC

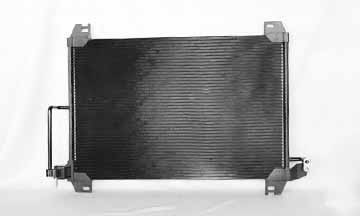

AC Condenser for 02-08 Chevy Trailblazer/Envoy/02-04 OM Bravada 4.2L (PFC)
- SKU
- 3054
- OE number
- 89019255 8-89019-255-0 89 019 255
- Partslink
- GM3030241
- Interchange
- 15-63385 15-63656 7013054 2319 640298 7-3054 3093 10566 203054U P40265 CF20007 31-3054 3054
$107.00
Available to order
Check if this fits your vehicle
Select your vehicle, or compare the part numbers above.
This part does not appear to fit your selected vehicle.
- Free economy shipping · Contiguous US only. Orders generally ship within 1 business day. Carrier transit time is additional. Shipping details
- 30-day returns after delivery on all products. No restocking fee. Return shipping: we pay in the contiguous US; customers pay elsewhere. Returns
- Questions about this part? (213) 985-3434, Monday–Friday, 9 AM–5 PM Pacific. Contact support
Vehicle fitment
YearsVehicleTrimNotes
Loading fitment…
Not sure? Contact parts support with your VIN and SKU 3054.
Specifications
- Brand
- TYC
- CAPA certified
- No
- DOT/SAE compliant
- No
- Proposition 65 warning
- No
- Country of manufacture
- China
- Package dimensions
- 35.43 in L × 23.62 in W × 4.72 in H
- Package weight
- 9.61 lb
- Configuration
- Parallel Flow
- Subcategory
- A/C Condenser
- Part type
- A/C Condenser
Product details
Certification & compliance
Manufacturing info
Dimensions & package info
More details
Dimensions & core
- Core Height (in)
- 18.11
- Core Thickness (in)
- 0.63
- Core Length (in)
- 23.4
- Outlet Diameter (in)
- 0.46
- Inlet Diameter (in)
- 0.46
Package & misc
- Inlet Fitting Design
- Block
- Outlet Fitting Design
- Block
Description
Brand New!
THESE ARE NOT REMANUFACTURED OR USED.
Quality is compared to that of OEM or better
Has same fitment as the original
Designs comparable to OE configuration and appearance
Performance tested to meet or exceed strict standard specifications
Louvered aluminum fins and tubes are bonded through a Nocolok furnace brazing process with non-recycled aluminum for maximum heat dissipation
Extruded aluminum tube for maximum heat dissipation/maximum structural integrity
There are three different types of Condensers (PFC,SERP,T&F)
PFC-Parallel Flow/Multi-Passage
SERP-Serpentine
T&F-Tube and Fin
Will fit for OEM # 8-89019-255-0
