TYC

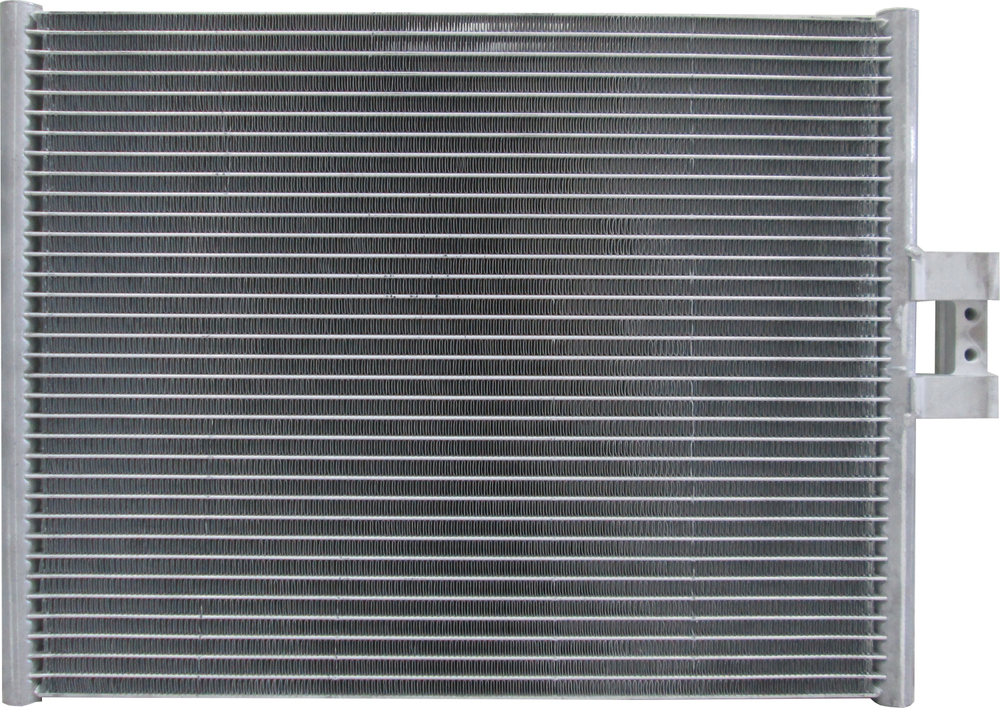

A/C Condenser for 2020-2025 Chevy Corvette V8 5.5L R 85601834 GM3030347
- SKU
- 30339
- Partslink
- GM3030347
$142.00
Available to order
Check if this fits your vehicle
Select your vehicle, or compare the part numbers above.
This part does not appear to fit your selected vehicle.
- Free economy shipping · Contiguous US only. Orders generally ship within 1 business day. Carrier transit time is additional. Shipping details
- 30-day returns after delivery on all products. No restocking fee. Return shipping: we pay in the contiguous US; customers pay elsewhere. Returns
- Questions about this part? (213) 985-3434, Monday–Friday, 9 AM–5 PM Pacific. Contact support
Vehicle fitment
YearsVehicleTrimNotes
No vehicle fitment listed for this part yet.
Not sure? Contact parts support with your VIN and SKU 30339.
Specifications
- Brand
- TYC
- CAPA certified
- No
- DOT/SAE compliant
- No
- Proposition 65 warning
- No
- Country of manufacture
- Taiwan
- Package dimensions
- 4.17 in L × 20.28 in W × 25.67 in H
- Package weight
- 4.4 lb
- Configuration
- Parallel Flow Condenser(PFC)
- Subcategory
- A/C Condenser
- Part type
- A/C Condenser
Product details
Certification & compliance
Manufacturing info
Dimensions & package info
More details
Dimensions & core
- Core Height (in)
- 13.46
- Core Thickness (in)
- 0.63
- Core Length (in)
- 18.11
- Inlet Diameter
- 11.8mm
- Outlet Diameter
- 11.8mm
Package & misc
- Inlet Connection Type
- Block Fitting
- Outlet Connection Type
- Block Fitting
Description
Brand New!
THESE ARE NOT REMANUFACTURED OR USED.
Quality is compared to that of OEM or better
Has same fitment as the original
Designs comparable to OE configuration and appearance
Performance tested to meet or exceed strict standard specifications
Louvered aluminum fins and tubes are bonded through a Nocolok furnace brazing process with non-recycled aluminum for maximum heat dissipation
Extruded aluminum tube for maximum heat dissipation/maximum structural integrity
There are three different types of Condensers (PFC,SERP,T&F)
PFC-Parallel Flow/Multi-Passage
SERP-Serpentine
T&F-Tube and Fin
Will fit for OEM # 85601834
